Software Toolchain 1 

In this course, we will be using OCaml as the main programming language. We will be working with multi-file projects, built using dune and GNU make. The projects will make use of various external libraries, and involve automated building and testing. The default OCaml version for this class is 4.13.1. If you don’t have a working OCaml framework (or your OCaml version is different from the one used below), please allocate at least 2 hours for going through this setup document, as some of the software packages listed required for our class will take quite a while to install.

Caution

The compiler we build targets the x86 64-bit processor architecture, which is commonly available on Intel and AMD based computers. If you have a new Apple M1 laptop, please contact the course staff for help.

OCaml

First, we need to install all the software necessary for fully fledged OCaml development.

Updating OCaml

Note

If you already have some version of opam installed in your system, but your OCaml version is older than 4.13.1 (you can check it by executing ocamlc --version), please, update your set up and install the necessary packages as follows:

opam update; opam upgrade
opam switch create 4.13.1
eval $(opam env)
opam install -y dune utop num menhir ocamlformat ocamlformat-rpc ocaml-lsp-server
opam user-setup install

Alternatively, if you don’t have a working opam and OCaml, please, follow the instructions below.

Installing OCaml from Scratch on Apple’s macOS

OCaml is well-supported in macOS, so the installation process is fairly straightforward.

Install the Homebrew package manager for macOS.
Install the following system packages using Homebrew:
```
brew install make m4 gcc pkg-config fswatch
```

Next, install the opam package manager for installing and maintaining different OCaml libraries. Execute the following lines from the terminal:

brew install opam
opam init -y --compiler=4.13.1
eval $(opam env)
opam install -y dune utop num menhir user-setup ocamlformat ocamlformat-rpc ocaml-lsp-server
opam user-setup install

Once done, add the following line to your ~/.bashrc, ~/.zshrc, and/or ~/.profile files (if they exist, otherwise create the file as appropriate for your shell, e.g., ~/.bashrc):
```
eval $(opam env)
```
Close your terminal window and start a new one.

To check that your OCaml is correctly installed, run ocamlc --version from the terminal. You should get the output 4.13.1, which is the version of the OCaml compiler we have just installed.

Installing OCaml from Scratch on MS Windows 10

Unfortunately, the OCaml infrastructure is not supported well on Windows (natively), therefore developing large multi-file projects in it is problematic. To circumvent this issue, we suggest running OCaml and the related software using Windows Subsystem for Linux, a utility that allows to run a distribution of Linux within your Windows 10 system. This setup takes a large number of steps, but once you’re done with it, you’ll have a premium support for OCaml, and also a fully functional Linux distribution installed on your machine.

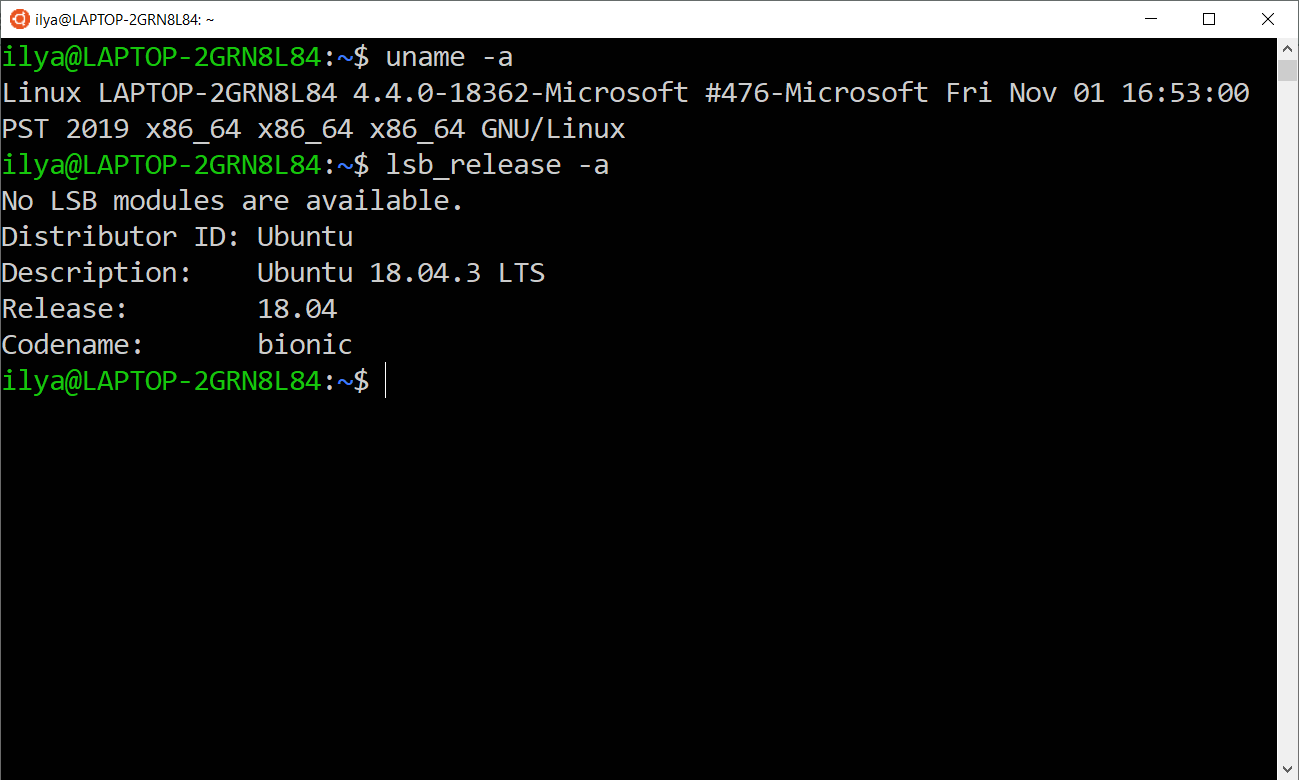

First, let us enable WSL and install a Linux distribution. The detailed steps are given in this online tutorial. Don’t forget the password for the Linux account you’ve just created: you will need it to install some software. At the end of this step, you should be able to run a “bare-bone” Ubuntu Linux terminal as an application within your Windows system. In my case, it looks as follows.

You can access your Windows home folder from WSL Linux via tha path /mnt/c/Users/YOURNAME/ where YOURNAME is your Windows user name. It is convenient to make a symbolic link for it, so you could access it quickly, for instance, calling it home. This is how you create such a link:
```
cd ~
ln -s /mnt/c/Users/YOURNAME/ home
```
Now you can navigate to you Windows home folder via cd ~/home and to your Linux home folder via cd ~.

Steps 3-4 are optional and are only required if you’re planning to use Emacs.
You might want to install a graphical shell for the Linux distribution running in WSL. This article provides detailed instructions on how to do so. Here are some comments:
- You don’t have to install Firefox in WSL Linux, as you can use your Windows browser instead.
- The required graphical XServer shell (run separately from Windows) can be downloaded from this resource.
- To run Linux with the graphical mode, you will always have to first run the XServer, and then the Ubuntu shell, in which you will have to type xfce4-session. The Ubuntu window will have to stay running as long as you use Linux.
If the Linux image appears to be somewhat “blurred”, here’s how to fix it:
- First, add the following lines at the end of the file ~/.bashrc in your Linux home folder:
```
export GDK_SCALE=0.5
export GDK_DPI_SCALE=2
```
  This can be done using the nano editor, similarly to how it is done in this tutorial.

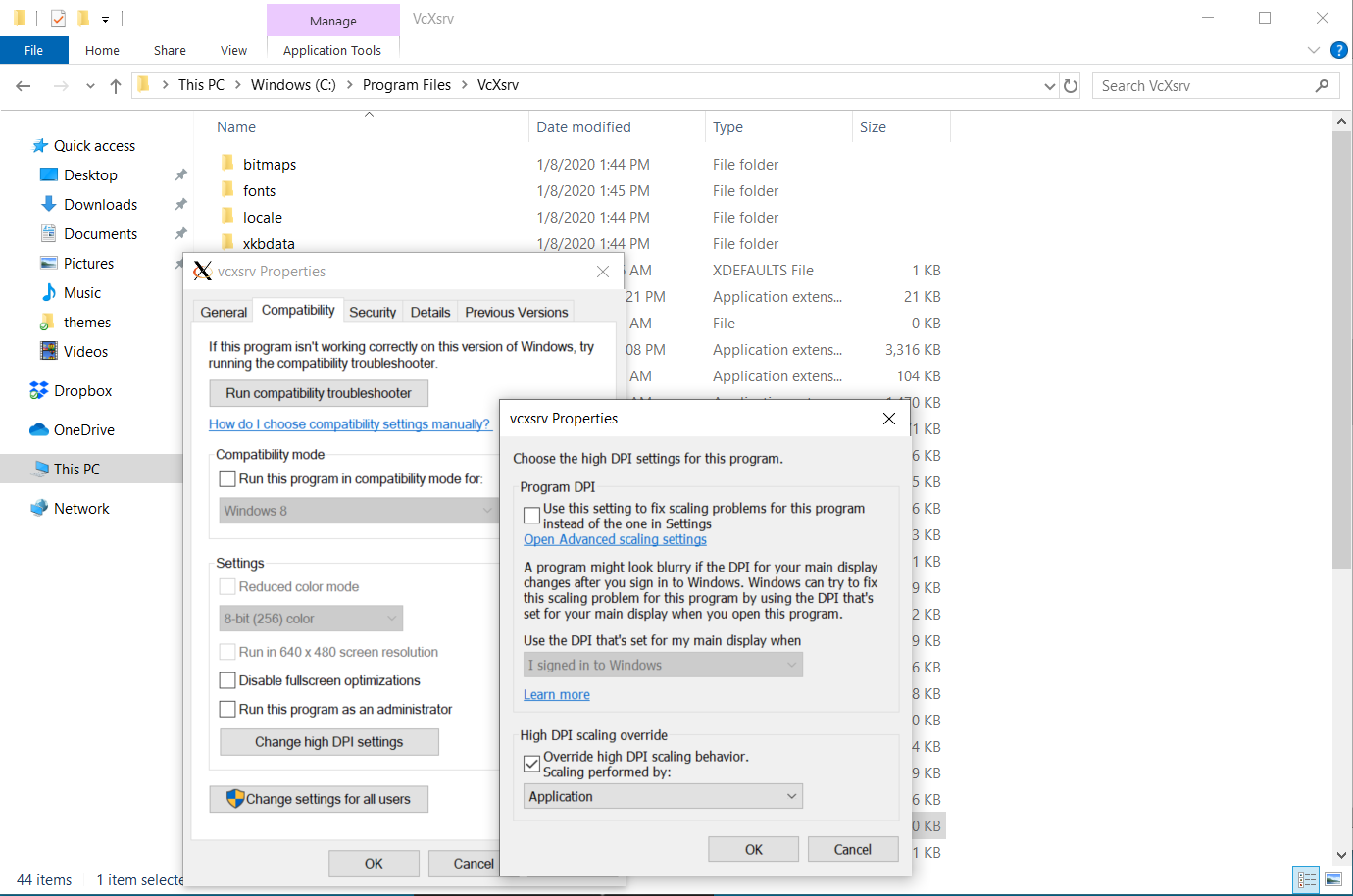

- Next, close any running instance of that X server (VcxSrv). Open the folder where you have installed it (e.g., C:\Program Files\VcXsrv), right click on vcxsrv.exe. Choose Properties > Compatibility tab > Change high DPI settings > Enable Override high DPI scaling and change it to Application option. Here is the screenshot looks like after changing the settings:

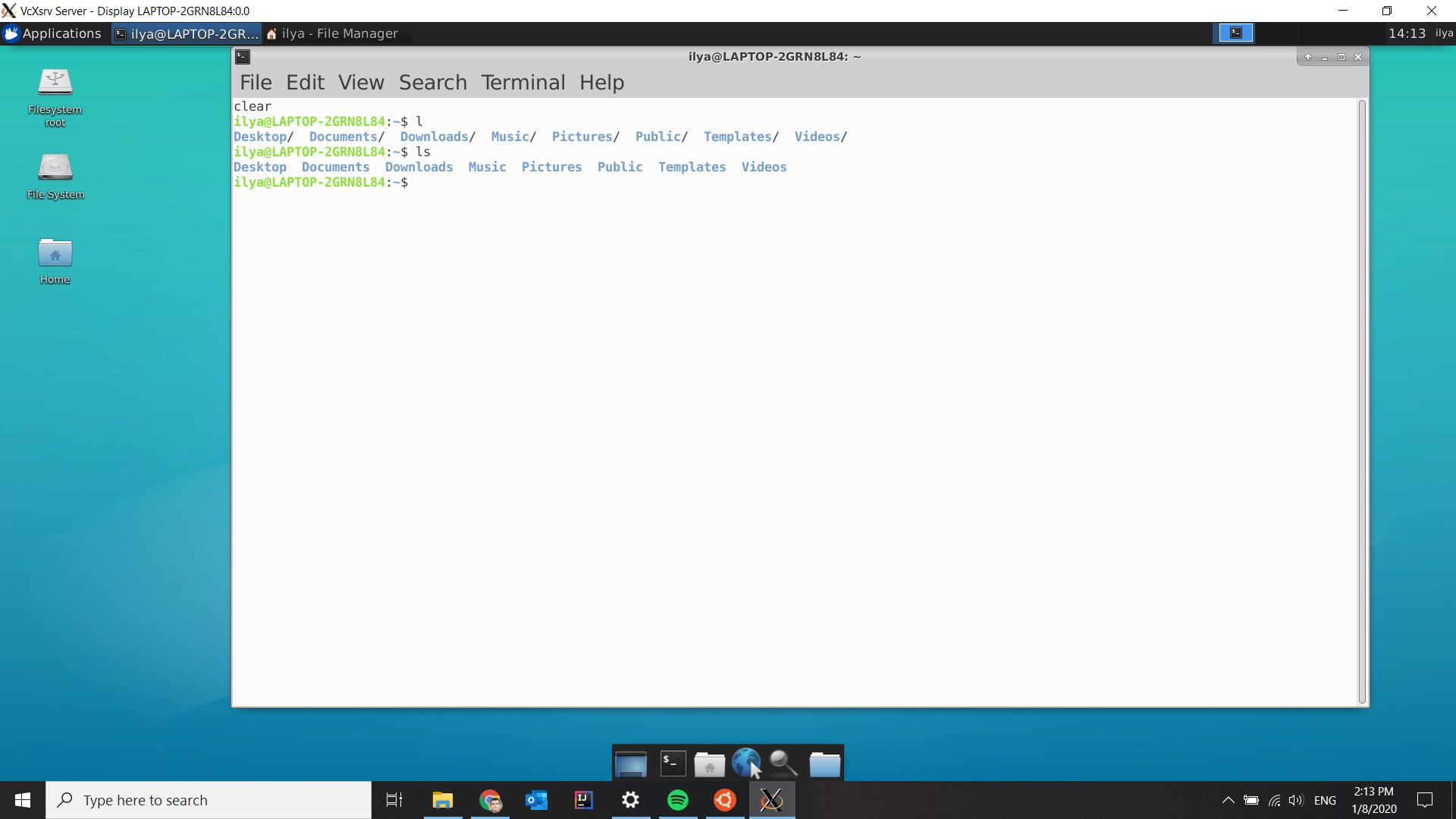

Once you have done all of this, you can run Linux terminal within the graphical XFCE shell and execute all commands from it, rather than from a Windows-started Ubuntu terminal. In my case, it looks as follows:

So far so good, now we have a running Linux, so it’s time to install OCaml libraries. First, we need to install a number of Linux packages that OCaml needs. Run the following lines from Linux terminal (it can be done both from within graphical shell, or from within a separate Ubuntu terminal run as a Windows applications):
```
sudo apt install make m4 gcc pkg-config libx11-dev fswatch
```
Don’t forget to enter the password you’ve created for your Linux account, it might be different from your Windows one. Be patient: installing those packages will take quite some time.
Next, we will install the opam package manager for working with different OCaml libraries. Execute the following lines from Linux terminal:
```
sudo add-apt-repository ppa:avsm/ppa
sudo apt install opam
opam init -y --compiler=4.13.1 --disable-sandboxing
eval $(opam env)
opam install -y dune utop num menhir ocamlformat ocamlformat-rpc ocaml-lsp-server
opam user-setup install
```
Once done, add the following line to the ~/.bashrc file in your WSL/Linux (sub)system:
```
eval $(opam env)
```
After that, close your terminal window and start a new one.

To check that your OCaml is correctly installed, run ocamlc --version from the terminal. You should get the output 4.13.1, which is the version of the OCaml compiler we have just installed.
We recommend you to use VSCode for your OCaml your development, assuming you’ve done steps 1-6.

Start by installing the Remote-WSL plugin. It is the one suggested the first time you run VSCode. Alternatively, you can install it by pressing Ctrl-Shift-P, typing install extensions, and choosing Install Extensions item from the dropdown menu, and then finding and installing the Remote-WSL extension.

After installing that extension, press Ctrl-Shift-P and choose Remote-WSL: New Window. This will take a few seconds and will start a new window of VSCode that runs inside your WSL Linux (you can even start a Linux terminal there).

Next, in this remote window, follow the instructions for VScode setup below.

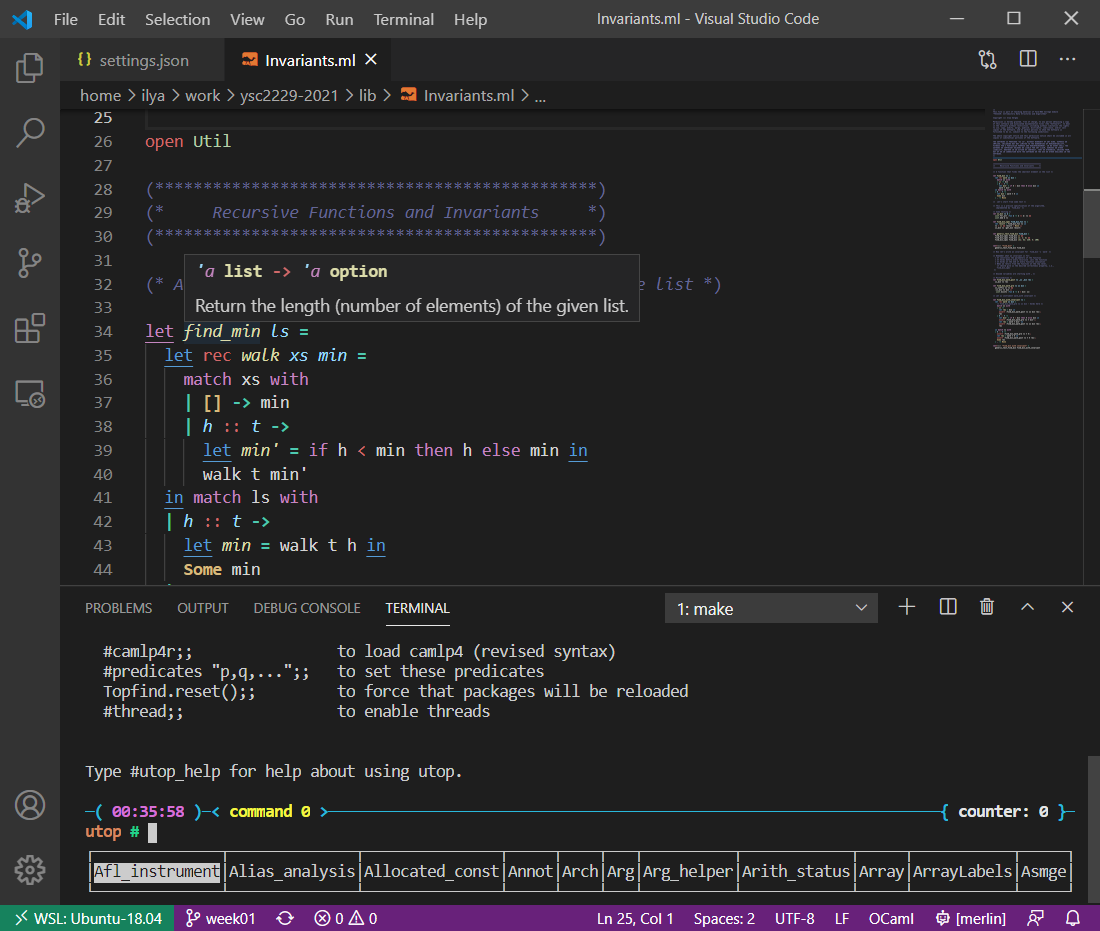

Now, you can open an OCaml file (Ctrl-Shift-P, followed by “File: Open File”) and enjoy the advanced features: highlighting, code completion, and type information, as well as many others. An example of the UI is shown below. Notice the indicators at the bottom of the screen, showing that VSCode runs in WSL (Ubuntu), with OCaml support enabled:

Installing OCaml from Scratch on Linux

If you’re using Linux, the setup is similar to the one for Windows 10 WSL described previously. Just follow the points above starting from the step 5. If you’re using a distribution different from Ubuntu, make sure to use the corresponding package manager (instead of apt) to get the system packages in the step 5.

Installing LLVM and Clang

For some projectsin this class, we will be using the LLVM framework, which you can install as follows:

Ubuntu or MS Windows 10 with WSL: run sudo apt-get update && apt-get install clang
macOS option 1: Install command line tools manually by running xcode-select --install from the terminal
macOS option 2: Install XCode (via the AppStore) run it, go to Preferences and install the command line tools on the “Locations” panel.
macOS option 3: Intstall via Homebrew, run brew install llvm.

VSCode

Regardles of what platform you have, we suggest that you use VSCode for OCaml development. To do so, after downloading and installing the VSCode IDE, install the OCaml Platform which enables OCaml support in VSCode. It assumes that you have installed all libraries above via opam.

You can install the extension by pressing Command-Shift-P, typing Install Extensions, and choosing that item from the dropdown menu.

Caution

The extensions named simply “OCaml” or “OCaml and Reason IDE” are not the right ones. (They are both old and no longer maintained by their developers.)

Windows only: make sure you install the extension with the button that says “Install on WSL: …”, not with a button that says only “Install”. The latter will not work.

Note

Make sure that you have install the “ocaml lsp server” and a few helper libraries, which support type annotation tool-tips, autocompletion hints, and code formatting:

opam install ocaml-lsp-server ocamlformat ocamlformat-rpc

(These should have already been installed if you followed the setup instructions above.)

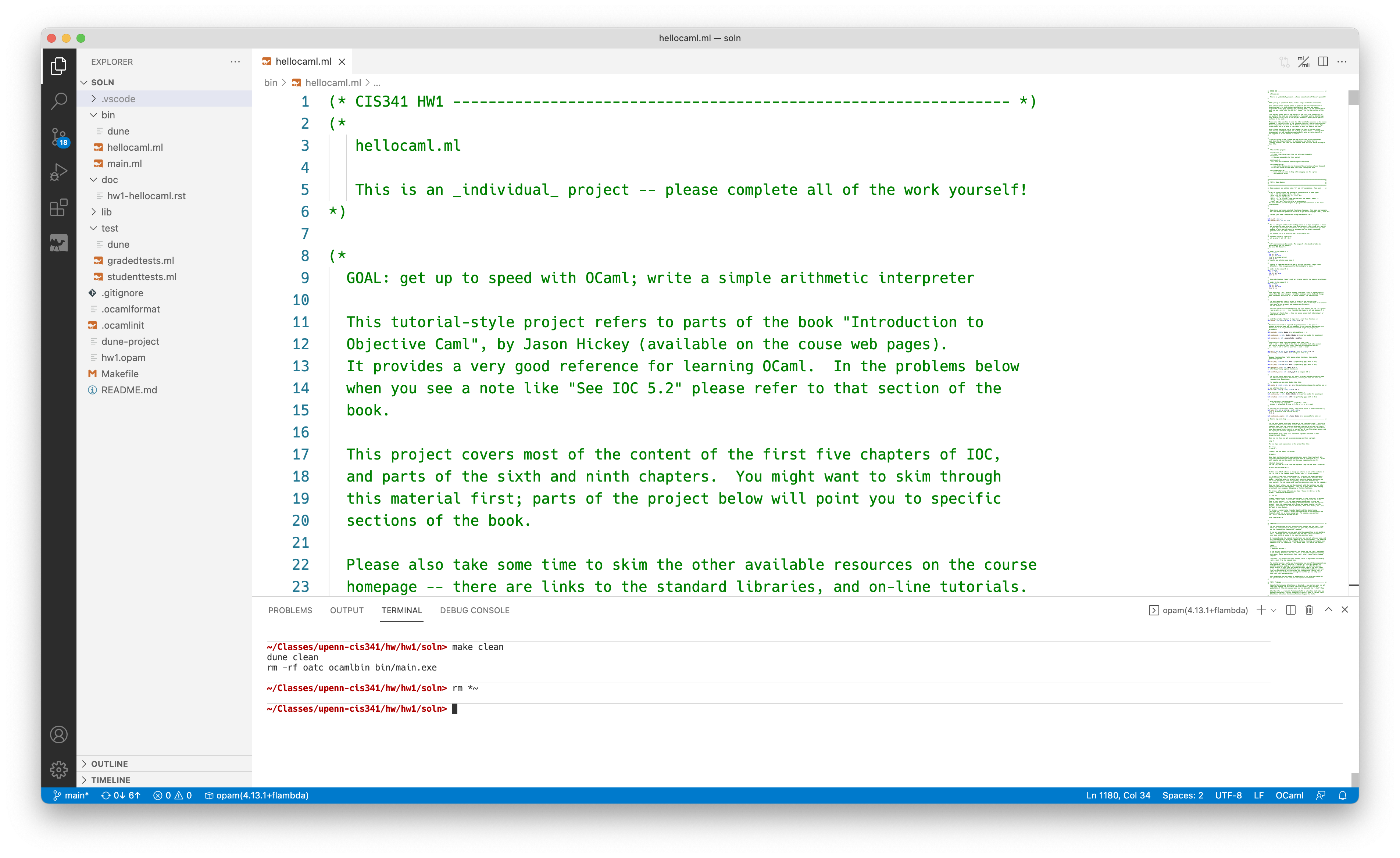

Now, if you open a project folder, it will look something like what is shown below.

Terminal

Note the “OCaml” tab at left side of the screen, which should be available once you have the OCaml Platform plugin installed. Clicking on it brings up some OCaml-specific features. In, particular, you can use it for Commands > Open a sandboxed terminal, which launches a terminal at the bottom of the IDE. Whenever you need to use make, dune, or the oatc compiler, you can use this terminal.

The first thing you should do after importing a project is to run make test from that terminal. It should succeed (perhaps with warnings about missing code) and produce test output.

dune

VSCode can only provide syntax type tooltypes and code completion hints after the project has successfully compiled (it looks in the _build directory for relevant metadata). Therefore, when editing your project files, it is useful to have dune running in “watch” mode so that it looks for changes and rebuilds the files automatically. You can do this by running dune build -w from the terminal. (You can stop that process by doing CTRL-C.)

FAQ and Troubleshooting

Question: May I use Emacs for programming in OCaml?

Answer: Of course, you can! This tutorial used to have notes on how to configure Emacs/Aquamacs for OCaml, but the experience of the last few years has confincingly demonstrated that VSCode is a much simpler and more convenient to use alternative, so why don’t you give it a try?
Problem: Merlin is not detected by VSCode, which gives an error “ocamlmerlin is not found”.

Solution: This is the case if you didn’t add eval $(opam env) to the configuration files (e.g., ~/.bashrc and/or ~/.profile). Adding it and restarting VSCode should fix it.

Alternatively (not recommended), you can add the following lines to the settings.json file (with your account name instead of YOURNAME). To find that file, press Command-Shift-P and choose “Preferences: Open Settings (JSON)” (to find it just type “settings” and choose the correct option):
```
"reason.path.ocamlmerlin": "/Users/YOURNAME/.opam/4.13.1/bin/ocamlmerlin"
```
For example, in my case the contents of this file look as follows:
```
{
    "window.zoomLevel": 2,
    "search.searchOnType": false,
    "reason.path.ocamlmerlin": "/Users/ilya/.opam/4.13.1/bin/ocamlmerlin"
}
```
Don’t forget to save the file.
Problem: In VSCode, a Git icon in the vertical panel on the left keeps blinking with the “watch” symbol when being updated.

Solution: Add the following line to your settings.json file:
```
"git.showProgress": false
```

Footnotes

1: These instructions were adapted from a version kindly provided by Ilya Sergey.
