2. Setup and Walk-through

Warning

Make sure to stop your Amazon instances! We only have $150 of credits and we need it to last through Homework 7. You may need to take a long break during a homework, or you might take longer to read about something on google/stackoverflow; remember to stop your instance and restart it when you are ready to continue.

2.1. Vectorization

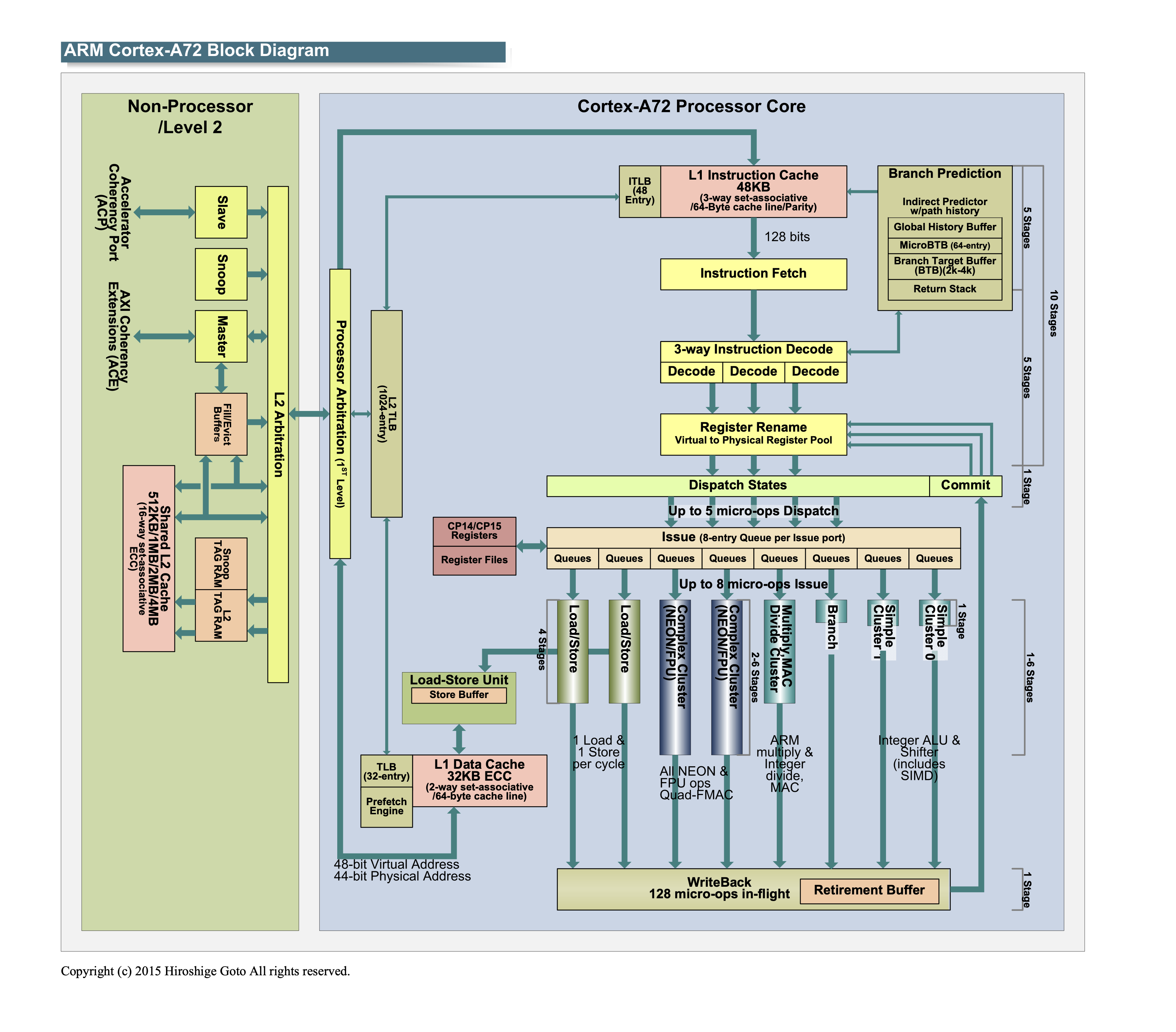

We will divide the computation into vectors that run on the NEON units in our ARM cores. Fig. 2.2 shows the microarchitecture of the ARM cores in our A1 instance. It’s a 3-way decode, out-of-order core with two 128-bit NEON SIMD units.

../_images/cortex-a72.png

Fig. 2.2 Microarchitecture of ARM Cortex A-72. Source: PC Watch

The Ultra96 boards have ARM Cortex A-53 cores. Compared to the A-72, it’s a 2-way decode, in-order core with one 64-bit NEON SIMD unit, as shown in Table 2.1.

Table 2.1 ARM Core Comparison, Source: A-53, A-72

Cortex A-53

Cortex A-72

ARM ISA

ARMv8 (32/64-bit)

ARMv8 (32/64-bit)

Decoder Width

2 micro-ops

3 ops (5 micro-ops)

Maximum Pipeline Length

8

16 stages

Integer Add

2

2

Integer Mul

1

1

Load/Store Units

1

1 + 1 (Dedicated L/S)

Branch Units

1

1

FP/NEON ALUs

1x64-bit

2x128-bit

L1 Cache

8KB-64KB I$ + 8KB-64KB D$

48KB I$ + 32KB D$

L2 Cache

128KB - 2MB (Optional)

512KB - 4MB

We will use the NEON Intrinsics API to program the NEON Units in our cores. An intrinsic behaves syntactically like a function, but the compiler translates it to a specific instruction that is inlined in the code. In the following sections, we will guide you through reading the NEON Programmer’s guide and learning to use these APIs.

2.2. Obtaining and Running the Code

In the previous homework, we dealt with a streaming application that compressed a video stream, and explored how to implement coarse-grain data-level parallelism and pipeline parallelism using std::threads to speedup the application. For this homework, we will use the same application and implement fine-grain, data-level parallelism on a vector architecture; we will explore both auto vectorization with the compiler and hand-crafted NEON vector intrinsics.

  • Login to your a1.xlarge instance and clone the ese532_code repository using the following command:

    git clone https://github.com/icgrp/ese532_code.git

    If you already have it cloned, pull in the latest changes using:

    cd ese532_code/
git pull origin master

    The code you will use for homework submission is in the hw4 directory. The directory structure looks like this:

    hw4/
    assignment/
        Makefile
        common/
            App.h
            Constants.h
            Stopwatch.h
            Utilities.h
            Utilities.cpp
        src/
            App.cpp
            Compress.cpp
            Differentiate.cpp
            Filter.cpp
            Scale.cpp
        neon_example/
            Example.cpp
    data/
        Input.bin (symlinks to hw3)
        Golden.bin (symlinks to hw3)

  • There are 3 targets. You can build all of them by executing make all in the hw4/assignment directory. You can build separately by:

    • make baseline and ./baseline to run the project with no vectorization of Filter_vertical function.

    • make neon_filter and ./neon_filter to run the project with Filter_vertical vectorized (you will modify the vectorized code later).

    • make example and ./example to run the neon example.

  • The data folder contains the input data, Input.bin, which has 100 frames of size \(960\) by \(540\) pixels, where each pixel is a byte. Golden.bin contains the expected output. Each program uses this file to see if there is a mismatch between your program’s output and the expected output.

  • The assignment/common folder has header files and helper functions used by the four parts.

  • You will mostly be working with the code in the assignment/src folder.

2.3. Working with NEON

We are going to do some reading from the arm developer website articles and the NEON Programmer’s Guide in the following sections.

2.3.1. Basics

Read Introducing Neon for Armv8-a and answer the following questions. We have given you the answers, however make sure you do the reading! Knowing where to look in a programmer’s guide is a skill by itself and we want to learn it now than later.

1. Give an example of a SISD instruction.

add r0, r5

and any instruction from the ARM and Thumb-2 ISA quick reference guide

2. Give an example of a SIMD instruction.

add v10.4s, v8.4s, v9.4s

and any instruction from the NEON quick reference guide

3. What is the size of a register in a Armv8-A NEON unit?

128-bit

4. What does a NEON register contain?

vectors of elements of the same data type

5. How many sizes of NEON vectors are there and what are those sizes?

Two sizes: 64-bit and 128-bit NEON vectors

6. What is a lane?

The same element position in the input and output registers is referred to as a lane.

7. How many lanes are there in a uint16x8_t NEON vector data type?

8

8. How many lanes are there in a uint32x2_t NEON vector data type?

2

9. Can there be a carry or overflow from one lane to another?

No.

Read NEON and floating-point registers and answer the following questions:

1. How many NEON registers are there in ARMv8 and what are they labeled as?

32 128-bit NEON registers, labeled as V0-V31.

2. What is the difference between an operand labeled v0.16b and an operand labeled q0?

v0.16b is a vector register and has 16 lanes with each lane having 1 byte. q0 is a scalar register of 128-bits.

3. Are registered labeled b0, h0, s0, d0, q0 separate registers?

No, all of them belong to the same register v0. They are qualified names for registers when a NEON instruction operate on scalar data.

Read chapter four from the NEON Programmer's Guide and answer the following questions:

1. Where are the NEON Intrinsics declared?

in arm_neon.h header file

2. What NEON data type are you going to use for an unsigned char array of size 16 elements?

uint8x16_t. It will got to Q register.

3. When should you use intrinsics with ‘q’ suffix vs intrinsics without ‘q’ suffix?

When the input and output vectors are 64-bit vectors, don’t use intrinsics with ‘q’ suffix. When the input and output vectors are 128-bit vectors, do use intrinsics with ‘q’ suffix.

2.3.2. Coding with NEON Intrinsics

Read chapter four from the NEON Programmer’s Guide and answer the following questions. Use the Neon Intrinsics Reference website to find and understand any instruction.

Tip

This will help you in coding for your homework.

1. Which intrinsic should you use to duplicate a scalar value to a variable of type uint16x8_t?

vdupq_n_u16

2. Which intrinsic should you use to load 16 bytes from a pointer to a variable of type uint8x16_t?

vld1q_u8

3. Which intrinsic should you use to add two vectors of type uint8x8_t without overflowing?

vaddl_u8

4. Which intrinsic should you use to get the first 8 lanes (low) of a variable of type uint8x16_t?

vget_low_u8

5. Which intrinsic should you use to get the second 8 lanes (high) of a variable of type uint8x16_t?

vget_high_u8

6. Which intrinsic should you use to multiply two vectors of type uint16x8_t?

vmulq_u16

7. Which intrinsic should you use to multiply two vectors of type uint16x8_t and accumlate the result to a variable of type uint16x8_t?

vmlaq_u16

8. Which intrinsic should you use to shift a variable of type uint16x8_t to the right?

vshrq_n_u16

9. Which intrinsic should you use to cast the uint8_t values in a variable of type uint8x8_t to be uint16_t?

vmovl_u8

10. Which intrinsic should you use to cast the uint16_t values in a variable of type uint16x8_t to be uint8_t?

vmovn_u16

11. Which intrinsic should you use to join two uint8x8_t vectors into a uint8x16_t vector?

vcombine_u8

12. Which intrinsic should you use to store data from a uint8x16_t variable to a pointer?

vst1q_u8

2.3.3. Optimization:
